HPL Press Custom Made Hydraulic Cylinders 500mm Piston

HPL Press Custom Made Hydraulic Cylinders 500mm Piston

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  HPL Press Custom Made Hydraulic Cylinders 500mm Piston Get Best Price

Product Details:
Place of Origin: China
Brand Name: Blutech
Model Number: ZSG500-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 1usd
Packaging Details: plywood cases
Delivery Time: 30-45 days
Supply Ability: 1000pcs
Detailed Product Description
Product Name: Custom Made Multi-Daylights Hydraulic High Pressure Laminates(HPL)) Press Action Type: Single Action
Stroke: 1000mm Piston Diameter: 500mm
Seal: Parker Work Pressure: 25 Mpa
Warranty: Three Years Application: Multi-Daylights Hydraulic High Pressure Laminates(HPL)) Press
Piston: C45/42CrMo Forged Steel Rod With Heat Treatment And Surface Hard Chrome Plating Piston Surface Hardness: HRC-52-55
Piston Surface Coating And Roughness: Chrome Plating Is Available And RA 0.4 Cylinder Body: 1045/42CrMo One Piece Forged Steel Or Welded Forged Steel With Stress Relief With Full UT Tested
Flange Ring: 1045/42CrMo Forged Steel With CNC Lathe Machining
High Light:

HPL Custom Made Hydraulic Cylinders

,

500mm Piston Custom Made Hydraulic Cylinders

,

single acting cylinder and double acting cylinder Blutech

Name:Custom Made Single/Double Action Cylinder for Multi-Daylights Hydraulic High Pressure Laminates(HPL) Press

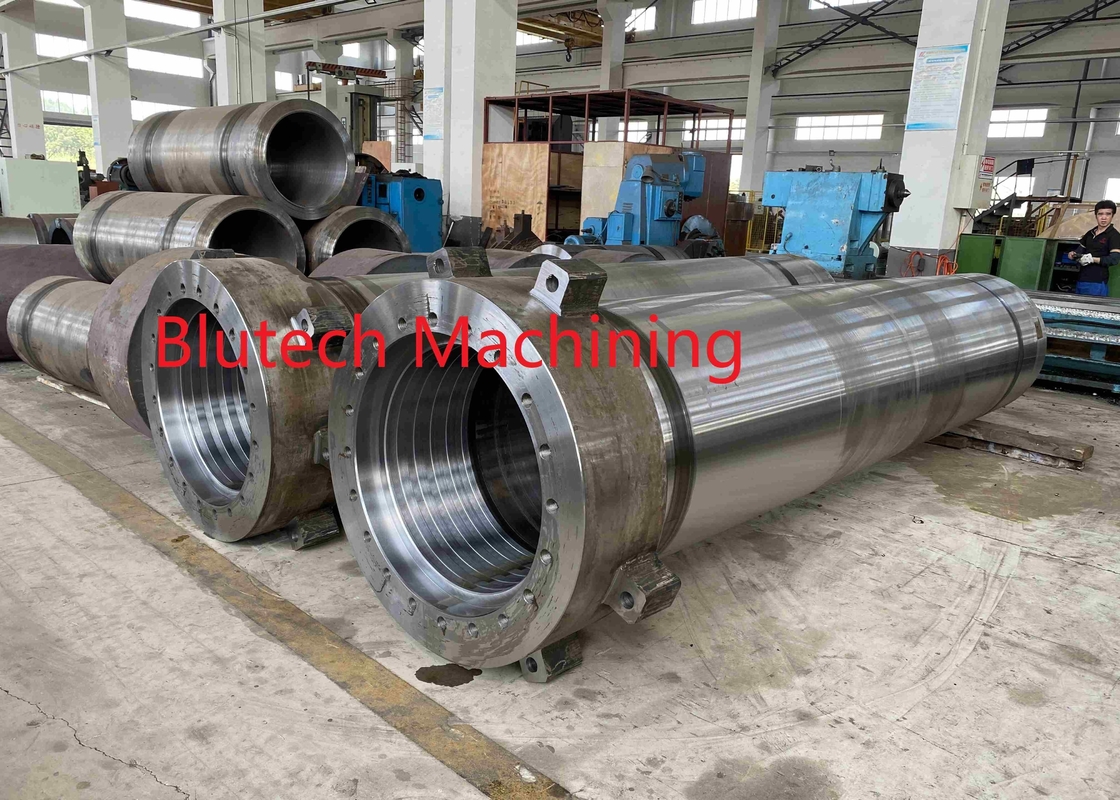

Multi-Daylights Hydraulic High Pressure Laminates(HPL)) Press shall need heavy,robust press frames with height heavy fabricated side columns.The hydraulic cylinder for Multi-Daylights Hydraulic High Pressure Laminates(HPL)) Press has been highly required on the quality,and these cylinders are designed for at least 50 years usage,so we have the robust cylinder body thickness -120mm,and all the parts are made from steel C45/42CrMo forged and Ultrosand testing passed and stress relief:



Cylinder body:1045/42CrMo one piece forged steel or welded forged steel with stress relief with full UT tested


Piston:C45/42CrMo forged steel rod with heat treatment and surface hard chrome plating with surface RA 0.4 and hardness HRC 45


Seal:German brand or Parker


Guide sleeve:Brass



Application



Those single action cylinders are for Multi-Daylights Hydraulic High Pressure Laminates(HPL)) Press



Main features

1. cylinder body made by steel C45/42CrMo forged steel with Ultrosand testing
2. Piston made by chilled cast iron with surface RA 0.4 and hardness no less than HRC48

3. Seal by Parker

4. Flange ring by steel c45/42CrMo forged steel

5. Max testing pressure : 32 Mpa

.

Product Mximum Capacity

Piston rod maximum diameter  1500mm
Length more than 15 Meter




CNC machinery:

1. CNC Horizontal lathe: Max Dia 2000mm* Length 15 Meter

2. CNC Deep hole boring machine : Dia1500mm * Length 15 Meter

3. Cylinder body inside grinding machine : Dia1500mm * Length 15 Meter

4. CNC Vertical lathe DIA.5 meters

5. CNC miller:Width 3 meter,length 8 meter



Main machinery procedure

1. Raw material cutting

2. Lathe into dimension and Ultrosand testing

3. Grinding cylinder body inside diameter into tolerance

4. Piton rod lathe into dimension

5. Piston rod heat treatment and surface hardened

6. piston out-diameter grinding

7. Piston out surface chrome plating

8. Grinding the piston out surface into tolerance

9. Assembly flange ring with seals and support rings

10. Assembly flange ring into cylinder body

11. Pressure testing

12. Painting and warehouse
